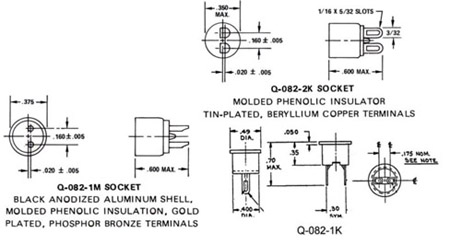

The Q-Series clip and socket sets shown on this page provide inexpensive, convenient mounting of C-Lites cartridges. Access to both sides of the panel is required for installation and replacements of the lamp cartridge. The recommended optional use of the rubber gasket makes sung installation of the spring clip much simplier. Installations should be on metal panels whenever possible to increase heat conduction. The lower power incandescent and the neon cartridges shown on the inside pages of this catalog should be used exclusively to reduce replacements and also because they generate less heat. Both solder lug and solder cup terminal type sockets are available. The Eldema socket Q-082-2K with the solder lug terminal is normally used in this type of installation and is the most popular. The sockets are all designed to accept .040 diameter pins.

Q-Series Sockets
Mates With Eldema C-Lites
---------------------------------------------------------------------------------------------
The Eldema Q-82-4p socket is for direct installation onto printed circuit boards. It is slightly raised at the pins to clear any eyelets on the board. The terminals are solder-finished. The front two pins are mounting pains to assist in anchoring the part; the rear two are the lamp connection point with the C-Lites pins insure positive electrical connections. The molded phenolic socket body has a dielectric rating of 500V RMS.

Q-Series Clips & Sockets
Mate With 2-Pin Lamps
---------------------------------------------------------------------------------------------
The Q-082-1K socket is designed for commercial applications utilizing 2-pin G.E. lamp bulbs. Mounting is accomplished with either the speed clip or spring clips shown. The terminals “float” slightly to accommodate variations in the center-to-center spacing of the 2 pins.
